DisplayObject is the base class for all DisplayList objects. More...

#include <DisplayObject.h>

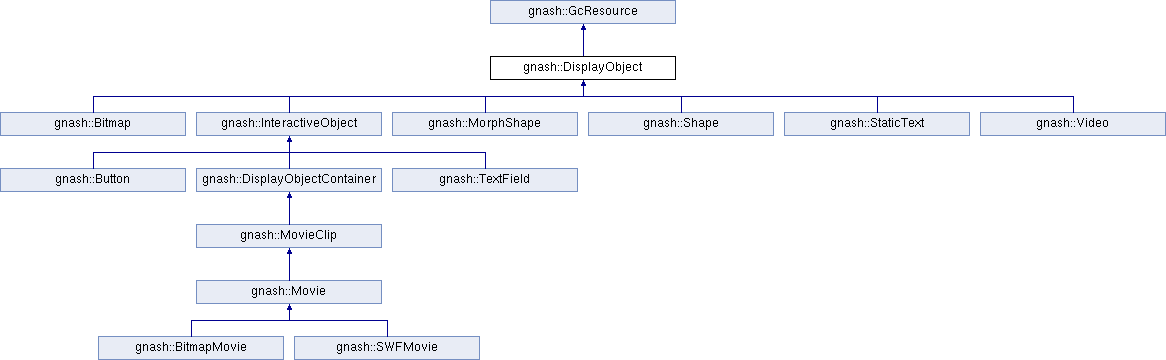

Inheritance diagram for gnash::DisplayObject:

Classes
class	MaskRenderer
	Render a dynamic mask for a specified DisplayObject. More...
Public Types
enum	BlendMode { BLENDMODE_UNDEFINED = 0, BLENDMODE_NORMAL = 1, BLENDMODE_LAYER, BLENDMODE_MULTIPLY, BLENDMODE_SCREEN, BLENDMODE_LIGHTEN, BLENDMODE_DARKEN, BLENDMODE_DIFFERENCE, BLENDMODE_ADD, BLENDMODE_SUBTRACT, BLENDMODE_INVERT, BLENDMODE_ALPHA, BLENDMODE_ERASE, BLENDMODE_OVERLAY, BLENDMODE_HARDLIGHT = 14 }
typedef std::vector< const action_buffer * >	BufferList
typedef std::map< event_id, BufferList >	Events
Public Member Functions
	DisplayObject (movie_root &mr, as_object object, DisplayObject parent)
	Construct a DisplayObject.
virtual	~DisplayObject ()
virtual as_environment &	get_environment ()
	Return a reference to the variable scope of this DisplayObject.
virtual void	visitNonProperties (KeyVisitor &) const
	Enumerate any non-proper properties.
DisplayObject *	parent () const
	Return the parent of this DisplayObject, or NULL if the DisplayObject has no parent.
void	set_parent (DisplayObject *parent)
	Set the parent of this DisplayObject.
virtual MovieClip *	to_movie ()
int	get_depth () const
void	set_depth (int d)
int	getVolume () const
	Get sound volume for this DisplayObject.
void	setVolume (int vol)
	Set sound volume for this DisplayObject.
int	getWorldVolume () const
	Get concatenated sound volume for this DisplayObject.
virtual int	getDefinitionVersion () const
	DisplayObjects can return the version of the SWF they were parsed from.
const Transform &	transform () const
void	setMatrix (const SWFMatrix &m, bool updateCache=false)
	Set local transform SWFMatrix for this DisplayObject.
void	set_x_scale (double factor)
	Set the xscale value of current SWFMatrix.
void	set_y_scale (double factor)
	Set the yscale value of current SWFMatrix.
void	set_rotation (double rot)
	Set the rotation value of current SWFMatrix.
virtual void	setWidth (double width)
	Set the width of this DisplayObject, modifying its SWFMatrix.
virtual void	setHeight (double height)
	Set the height of this DisplayObject, modifying its SWFMatrix.
void	setCxForm (const SWFCxForm &cx)
boost::uint16_t	get_ratio () const
void	set_ratio (boost::uint16_t r)
int	get_clip_depth () const
void	set_clip_depth (int d)
	See get_clip_depth()
bool	isMaskLayer () const
bool	isDynamicMask () const
DisplayObject *	getMask () const
	Return the DisplayObject masking this instance (if any)
void	setMask (DisplayObject *mask)
void	set_name (const ObjectURI &uri)
	Set DisplayObject name, initializing the original target member.
const ObjectURI &	get_name () const
std::auto_ptr< ExecutableCode >	get_event_handler (const event_id &id) const
	Get the built-in function handlers code for the given event.
void	add_event_handler (const event_id &id, const action_buffer &code)
	Set a built-in function handler for the given event.
virtual void	display (Renderer &renderer, const Transform &xform)=0
	Render the DisplayObject.
virtual StaticText *	getStaticText (std::vector< const SWF::TextRecord * > &, size_t &)
	Search for StaticText objects.
virtual SWFRect	getBounds () const =0
bool	pointInBounds (boost::int32_t x, boost::int32_t y) const
	Return true if the given point falls in this DisplayObject's bounds.
virtual bool	pointInShape (boost::int32_t x, boost::int32_t y) const =0
	Return true if the given point falls in this DisplayObject's shape.
virtual bool	pointInVisibleShape (boost::int32_t x, boost::int32_t y) const
	true if the given point falls in this DisplayObject's visible shape
virtual Movie *	get_root () const
	Return the relative root of this DisplayObject.
virtual MovieClip *	getAsRoot ()
	Return the _root ActionScript property of this DisplayObject.
virtual as_object *	pathElement (const ObjectURI &uri)
bool	get_accept_anim_moves () const
	Return true if PlaceObjects tag are allowed to move this DisplayObject.
bool	isDynamic () const
	Was this DisplayObject dynamically created ?
void	setDynamic ()
	Mark this DisplayObject as dynamically created.
void	transformedByScript ()
	Call this function when the sprite has been transformed due to ActionScript code.
void	set_visible (bool visible)
	Set whether this DisplayObject should be rendered.
bool	visible () const
bool	hasEventHandler (const event_id &id) const
	Return true if an handler for the given event is defined.
virtual InteractiveObject *	topmostMouseEntity (boost::int32_t, boost::int32_t)
	DisplayObjects are not a mouse entity by default.
virtual const DisplayObject *	findDropTarget (boost::int32_t x, boost::int32_t y, DisplayObject *dragging) const
	Point coordinates in global twips.
bool	invalidated () const
	Return whether this DisplayObject has been invalidated or not.
bool	childInvalidated () const
	Return whether this DisplayObject has and invalidated child or not.
virtual void	update ()
	Notify a change in the DisplayObject's appearance.
void	set_invalidated ()
	This function marks the DisplayObject as being modified in aspect and keeps track of current invalidated bounds the first time it's called after each call to clear_invalidated().
void	set_invalidated (const char *debug_file, int debug_line)
void	extend_invalidated_bounds (const InvalidatedRanges &ranges)
void	set_child_invalidated ()
void	clear_invalidated ()
virtual void	add_invalidated_bounds (InvalidatedRanges &ranges, bool force)
	Add the DisplayObject's invalidated bounds to the given ranges list.
virtual void	omit_display ()
virtual void	construct (as_object *=0)
	Callback invoked whenever a DisplayObject is placed on stage.
bool	unload ()
	Unload this instance from the stage.
virtual void	getLoadedMovie (Movie *newMovie)
	Accept a loaded Movie.
bool	unloaded () const
	Return true if this DisplayObject was unloaded from the stage.
virtual void	destroy ()
	Mark this DisplayObject as destroyed.
bool	isDestroyed () const
	Return true if this DisplayObject was destroyed.
bool	boundsInClippingArea (Renderer &renderer) const
std::string	getTargetPath () const
	Return full path to this object, in slash notation.
const std::string &	getOrigTarget () const
std::string DSOEXPORT	getTarget () const
	Return full path to this object, in dot notation.
virtual bool	isSelectableTextField () const
	Return true if this DisplayObject is a selectable TextField.
bool DSOEXPORT	allowHandCursor () const
	Return true if this DisplayObject allows turning the cursor into an hand shape when it happens to be the one receiving mouse events.
ObjectURI	getNextUnnamedInstanceName ()
	Used to assign a name to unnamed instances.
BlendMode	getBlendMode () const
void	setBlendMode (BlendMode bm)
virtual bool	handleFocus ()
	Set the current focus to this DisplayObject.
virtual void	killFocus ()
	Some DisplayObjects require actions on losing focus.
double	rotation () const
double	scaleX () const
double	scaleY () const
as_object *	object () const
virtual void	markReachableResources () const
	Mark all reachable resources.
virtual void	markOwnResources () const
	Called by markReachableResources()
boost::tribool	focusRect () const
void	focusRect (boost::tribool focus)
Static Public Member Functions
static as_value	blendMode (const fn_call &fn)
	Getter-setter for blendMode.
Static Public Attributes
static const int	lowerAccessibleBound = -16384
	See also http://www.kirupa.com/developer/actionscript/depths2.htm.
static const int	upperAccessibleBound = 2130690044
static const int	staticDepthOffset = lowerAccessibleBound
static const int	removedDepthOffset = -32769
static const int	noClipDepthValue = -1000000
Protected Member Functions
virtual bool	unloadChildren ()
movie_root &	stage () const
	Get the movie_root to which this DisplayObject belongs.
void	saveOriginalTarget ()
const Events &	get_event_handlers () const
void	set_event_handlers (const Events &copyfrom)
as_object *	getPathElementSeparator (string_table::key key)
	look for '.', 'this', '..', '_parent', '_level0' and '_root'
Protected Attributes
ObjectURI	_name
	Name of this DisplayObject (if any)
DisplayObject *	_parent
InvalidatedRanges	m_old_invalidated_ranges
	Bounds of this DisplayObject instance before first invalidation since last call to clear_invalidated().

Detailed Description

DisplayObject is the base class for all DisplayList objects.

It represents a single active element in a movie. This class does not supply any interactivity. The hierarchy of DisplayObjects in a movie provides all visual elements in a SWF. The DisplayObject hierarchy is independent of ActionScript resources, but can be controlled via AS. DisplayObjects that can be controlled through ActionScript have an associated as_object. DisplayObjects such as Shape, do not have an associated object and cannot be referenced in AS. Derived classes include InteractiveObject, StaticText, Bitmap, Video, and Shape. All DisplayObjects may be constructed during SWF parsing. In this case they are constructed using an immutable, non-copyable SWF::DefinitionTag. This tag should never be changed! Most DisplayObjects may also be constructed dynamically. In AS3, Bitmaps and Shapes can be dynamically created. Dynamically-created DisplayObjects must not have a SWF::DefinitionTag! The presence of a definition tag may be used to distinguish static from dynamic DisplayObjects, but tags are not always stored. They are not stored in most InteractiveObjects because most properties can be overridden during SWF execution.

Member Typedef Documentation

typedef std::vector<const action_buffer*> gnash::DisplayObject::BufferList

typedef std::map<event_id, BufferList> gnash::DisplayObject::Events

Member Enumeration Documentation

enum gnash::DisplayObject::BlendMode

Enumerator:

BLENDMODE_UNDEFINED
BLENDMODE_NORMAL
BLENDMODE_LAYER
BLENDMODE_MULTIPLY
BLENDMODE_SCREEN
BLENDMODE_LIGHTEN
BLENDMODE_DARKEN
BLENDMODE_DIFFERENCE
BLENDMODE_ADD
BLENDMODE_SUBTRACT
BLENDMODE_INVERT
BLENDMODE_ALPHA
BLENDMODE_ERASE
BLENDMODE_OVERLAY
BLENDMODE_HARDLIGHT

Constructor & Destructor Documentation

gnash::DisplayObject::DisplayObject	(	movie_root &	mr,
		as_object *	object,
		DisplayObject *	parent
	)

Construct a DisplayObject.

Parameters:

mr	The movie_root containing the DisplayObject hierarchy. All DisplayObjects may need movie_root resources.
object	An object to be associated with this DisplayObject. If this is non-null, the DisplayObject will be referenceable in ActionScript. Referenceable DisplayObjects may access AS resources through their associated object.
parent	The parent of the new DisplayObject. This may be null.

References assert, m_old_invalidated_ranges, gnash::geometry::SnappingRanges2d::isNull(), and gnash::as_object::setDisplayObject().

virtual gnash::DisplayObject::~DisplayObject ( ) [inline, virtual]

Member Function Documentation

void gnash::DisplayObject::add_event_handler	(	const event_id &	id,
		const action_buffer &	code
	)

Set a built-in function handler for the given event.

Mark the DisplayObject as having mouse or Key event handlers if this is the case.

NOTE: this function is only for registering statically-defined event handlers, which are the ones attached to a DisplayObject with a PlaceObject2. It's the DisplayObject's responsibility to properly invoke any user-defined event handler, which are the ones attached to a DisplayObject with ActionScript code.

Parameters:

id	The event triggering the handler.
code	An action buffer to execute when given event is triggered. The buffer is externally owned (not copied), make sure it is kept alive for the whole lifetime of this DisplayObject.

Referenced by set_event_handlers(), and gnash::MovieClip::add_display_object().

void gnash::DisplayObject::add_invalidated_bounds	(	InvalidatedRanges &	ranges,
		bool	force
	)		`[virtual]`

Add the DisplayObject's invalidated bounds *to* the given ranges list.

NOTE that this method should include the bounds that it covered the last time clear_invalidated() was called, as those need to be rerendered as well (to clear the region previously occupied by this DisplayObject).

That's why it returns the *union* of old_invalidated_ranges and the current bounds. The function is also used internally by set_invalidated() to update m_old_invalidated_ranges itself (you may notice some kind of circular reference), but that's no problem since old_invalidated_ranges is NULL during that call.

It is used to determine what area needs to be re-rendered. The coordinates are world coordinates (in TWIPS). Only instances with _invalidated flag set are checked unless force is set.

Reimplemented in gnash::MovieClip, gnash::TextField, gnash::InteractiveObject, gnash::Button, gnash::Video, and gnash::Bitmap.

References gnash::geometry::SnappingRanges2d::add(), m_old_invalidated_ranges, visible(), gnash::SWFRect::expand_to_transformed_rect(), gnash::getWorldMatrix(), getBounds(), and gnash::SWFRect::getRange().

Referenced by gnash::Button::add_invalidated_bounds(), gnash::DisplayList::replaceDisplayObject(), gnash::DisplayList::add_invalidated_bounds(), and set_invalidated().

bool gnash::DisplayObject::allowHandCursor ( ) const

Return true if this DisplayObject allows turning the cursor into an hand shape when it happens to be the one receiving mouse events.

Whether to use a hand cursor when the mouse is over this DisplayObject.

This depends on the useHandCursor AS property, but: 1. Only AS-referenceable objects may use a hand cursor (TODO: check Video). 2. Only objects with a release event may use a hand cursor. CANNOT CONFIRM THE ABOVE, SEE ButtonEventsTest.swf in misc-ming.all 3. The default value (if the property is not defined) is true.

References gnash::getObject(), gnash::as_object::get_member(), gnash::NSV::PROP_USEHANDCURSOR, gnash::toBool(), and gnash::getVM().

Referenced by gnash::Gui::notifyMouseMove().

as_value gnash::DisplayObject::blendMode ( const fn_call & fn ) [static]

Getter-setter for blendMode.

If the blend mode is undefined, it doesn't return a string.

The extra static cast is required to keep OpenBSD happy.

References LOG_ONCE, _, gnash::fn_call::nargs, getBlendMode(), BLENDMODE_UNDEFINED, gnash::fn_call::arg(), gnash::as_value::is_undefined(), setBlendMode(), BLENDMODE_NORMAL, gnash::as_value::is_number(), gnash::toNumber(), gnash::getVM(), BLENDMODE_HARDLIGHT, gnash::as_value::to_string(), and gnash::key::_1.

Referenced by gnash::registerMovieClipNative().

bool gnash::DisplayObject::boundsInClippingArea ( Renderer & renderer ) const

Returns true when the DisplayObject bounds intersect with the current rendering clipping area.

There is no need to do any rendering for this DisplayObject when this function returns false because the renderer will not change any pixels in the area where this DisplayObject is placed.

References getBounds(), gnash::getWorldMatrix(), gnash::SWFMatrix::transform(), gnash::Renderer::bounds_in_clipping_area(), and gnash::SWFRect::getRange().

Referenced by gnash::DisplayList::display().

bool gnash::DisplayObject::childInvalidated ( ) const [inline]

Return whether this DisplayObject has and invalidated child or not.

Referenced by gnash::MovieClip::omit_display(), and gnash::MovieClip::add_invalidated_bounds().

void gnash::DisplayObject::clear_invalidated ( ) [inline]

Clear invalidated flag and reset m_old_invalidated_bounds to null.

It is very important that each DisplayObject with any m_XXXX_invalidated flag set calls clear_invalidated() during the rendering of one frame. Basically this means each call to display() must match a call to clear_invalidated. This includes no-op display() calls, i.e. when the DisplayObject is outside of the screen. The DisplayList must still call clear_invalidated() even if display() is not necessary.

Not doing so will result in a stale invalidated flag which in turn will prevent the parent to be informed when this DisplayObject (or a child) is invalidated again (see set_invalidated() recursion).

References m_old_invalidated_ranges, and gnash::geometry::SnappingRanges2d::setNull().

Referenced by gnash::Bitmap::display(), gnash::Button::display(), omit_display(), gnash::MorphShape::display(), gnash::movie_root::display(), gnash::MovieClip::display(), gnash::MovieClip::omit_display(), gnash::Shape::display(), gnash::StaticText::display(), gnash::TextField::display(), and gnash::Video::display().

virtual void gnash::DisplayObject::construct ( as_object * = 0 ) [inline, virtual]

Callback invoked whenever a DisplayObject is placed on stage.

This function must be called when the DisplayObject is placed on stage for the first time.

The DisplayObject version of this call sets the original target of the DisplayObject, for soft references to work. If you override the method remember to call saveOriginalTarget() as the first thing.

This handles all ActionScript construction and initialization events.

Reimplemented in gnash::MovieClip, gnash::Button, gnash::SWFMovie, gnash::Bitmap, and gnash::Video.

References saveOriginalTarget().

Referenced by gnash::Button::set_current_state(), gnash::Button::construct(), gnash::MovieClip::addDisplayListObject(), gnash::MovieClip::attachCharacter(), gnash::MovieClip::add_display_object(), and gnash::MovieClip::replace_display_object().

void gnash::DisplayObject::destroy ( ) [virtual]

Mark this DisplayObject as destroyed.

A DisplayObject should be destroyed when is removed from the display list and is not more needed for names (target) resolutions. Sprites are needed for names resolution whenever themselves or a contained object has an onUnload event handler defined, in which case we want the event handler to find the 'this' variable w/out attempting to rebind it.

Note: this function can safely release most memory associated with the DisplayObject as it will not be needed anymore.

we may destory a DisplayObject that's not unloaded. (we don't have chance to unload it in current model, see new_child_in_unload_test.c) We don't destroy ourself twice, right ?

Reimplemented in gnash::MovieClip, and gnash::Button.

References gnash::as_object::clearProperties(), and assert.

Referenced by gnash::Button::set_current_state(), gnash::Button::destroy(), gnash::DisplayList::placeDisplayObject(), gnash::DisplayList::replaceDisplayObject(), gnash::DisplayList::removeDisplayObject(), gnash::DisplayList::unload(), gnash::DisplayList::destroy(), and gnash::DisplayList::mergeDisplayList().

virtual void gnash::DisplayObject::display	(	Renderer &	renderer,
		const Transform &	xform
	)		`[pure virtual]`

Render the DisplayObject.

All DisplayObjects must have a display() function.

Implemented in gnash::MovieClip, gnash::TextField, gnash::Button, gnash::StaticText, gnash::Bitmap, gnash::Video, gnash::InteractiveObject, gnash::Shape, and gnash::MorphShape.

Referenced by gnash::DisplayList::display(), and gnash::DisplayObject::MaskRenderer::MaskRenderer().

void gnash::DisplayObject::extend_invalidated_bounds ( const InvalidatedRanges & ranges )

Calls set_invalidated() and extends old_invalidated_ranges to the given value so that also this area gets re-rendered (used when replacing DisplayObjects).

References set_invalidated(), m_old_invalidated_ranges, and gnash::geometry::SnappingRanges2d::add().

Referenced by gnash::DisplayList::placeDisplayObject(), and gnash::DisplayList::replaceDisplayObject().

virtual const DisplayObject* gnash::DisplayObject::findDropTarget	(	boost::int32_t	x,
		boost::int32_t	y,
		DisplayObject *	dragging
	)		const `[inline, virtual]`

Point coordinates in global twips.

Find highest depth DisplayObject whose shape contains the given point and is not the DisplayObject being dragged or any of its childs.

Reimplemented in gnash::MovieClip.

References visible(), and pointInVisibleShape().

boost::tribool gnash::DisplayObject::focusRect ( ) const [inline]

void gnash::DisplayObject::focusRect ( boost::tribool focus ) [inline]

bool gnash::DisplayObject::get_accept_anim_moves ( ) const [inline]

Return true if PlaceObjects tag are allowed to move this DisplayObject.

Once a DisplayObject has been transformed by ActionScript, further transformation trought non-action SWF constrol tags is not allowed.

See scriptTransformed()

Referenced by gnash::DisplayList::moveDisplayObject(), and gnash::DisplayList::mergeDisplayList().

int gnash::DisplayObject::get_clip_depth ( ) const [inline]

Returns the clipping depth (if any) of this DisplayObject. The parameter tells us to use the DisplayObject as a mask for all the objects contained in the display list from _depth to m_clipping_depth inclusive.

The value returned by get_clip_depth() is only valid when isMaskLayer() returns true!

Referenced by gnash::DisplayList::display(), gnash::DisplayList::add_invalidated_bounds(), gnash::MovieClip::duplicateMovieClip(), and gnash::MovieClip::getLoadedMovie().

int gnash::DisplayObject::get_depth ( ) const [inline]

Referenced by gnash::Button::set_current_state(), gnash::DisplayList::getNextHighestDepth(), gnash::DisplayList::getDisplayObjectAtDepth(), gnash::DisplayList::add(), gnash::DisplayList::swapDepths(), gnash::DisplayList::display(), gnash::DisplayList::add_invalidated_bounds(), gnash::DisplayList::mergeDisplayList(), gnash::operator<<(), getTargetPath(), getTarget(), gnash::movie_root::setLevel(), gnash::movie_root::swapLevels(), gnash::movie_root::replaceLevel(), gnash::DepthComparator::operator()(), gnash::MovieClip::notifyEvent(), gnash::MovieClip::getLoadedMovie(), gnash::MovieClip::removeMovieClip(), and gnash::TextField::removeTextField().

virtual as_environment& gnash::DisplayObject::get_environment ( ) [inline, virtual]

Return a reference to the variable scope of this DisplayObject.

Reimplemented in gnash::MovieClip.

References assert, _parent, and get_environment().

Referenced by gnash::Button::mouseEvent(), and get_environment().

std::auto_ptr< ExecutableCode > gnash::DisplayObject::get_event_handler ( const event_id & id ) const

Get the built-in function handlers code for the given event.

NOTE: this function is only for getting statically-defined event handlers, which are the ones attached to a DisplayObject with a PlaceObject2. It's the DisplayObject's responsibility to properly fetch any user-defined event handler, which are the ones attached to a DisplayObject with ActionScript code.

Referenced by gnash::Button::mouseEvent(), and gnash::MovieClip::notifyEvent().

const Events& gnash::DisplayObject::get_event_handlers ( ) const [inline, protected]

Referenced by gnash::MovieClip::duplicateMovieClip(), gnash::MovieClip::notifyEvent(), gnash::MovieClip::construct(), and gnash::MovieClip::getLoadedMovie().

const ObjectURI& gnash::DisplayObject::get_name ( ) const [inline]

References _name.

Referenced by getTargetPath(), getTarget(), and gnash::MovieClip::getLoadedMovie().

boost::uint16_t gnash::DisplayObject::get_ratio ( ) const [inline]

Referenced by gnash::DisplayList::mergeDisplayList(), and gnash::MovieClip::duplicateMovieClip().

virtual Movie* gnash::DisplayObject::get_root ( ) const [inline, virtual]

Return the relative root of this DisplayObject.

The "relative" is the Movie created by the same SWF definition that contained the definition of this DisplayObject.

The default implementation is to invoke get_root against this DisplayObject's parent.

Reimplemented in gnash::MovieClip.

References parent(), and get_root().

Referenced by getAsRoot(), get_root(), gnash::sprite_definition::createDisplayObject(), and gnash::TextField::getDefinitionVersion().

MovieClip * gnash::DisplayObject::getAsRoot ( ) [virtual]

Return the _root ActionScript property of this DisplayObject.

By default calls get_root(). The resulting MovieClip may be passed to actionscript methods, so it is not const. As the override in MovieClip may return this, the method cannot be const either.

Reimplemented in gnash::MovieClip.

References get_root().

Referenced by gnash::findObject(), gnash::getDisplayObjectProperty(), gnash::Function2::call(), and gnash::MovieClip::getAsRoot().

BlendMode gnash::DisplayObject::getBlendMode ( ) const [inline]

Referenced by blendMode().

virtual SWFRect gnash::DisplayObject::getBounds ( ) const [pure virtual]

Implemented in gnash::TextField, gnash::MovieClip, gnash::Button, gnash::StaticText, gnash::InteractiveObject, gnash::Bitmap, gnash::Video, gnash::Shape, and gnash::MorphShape.

Referenced by gnash::Button::getBounds(), add_invalidated_bounds(), setWidth(), gnash::getHeight(), setHeight(), boundsInClippingArea(), and pointInBounds().

virtual int gnash::DisplayObject::getDefinitionVersion ( ) const [inline, virtual]

DisplayObjects can return the version of the SWF they were parsed from.

Reimplemented in gnash::MovieClip, and gnash::TextField.

void gnash::DisplayObject::getLoadedMovie ( Movie * newMovie ) [virtual]

Accept a loaded Movie.

Reimplemented in gnash::MovieClip.

References LOG_ONCE, _, gnash::typeName(), and UNUSED.

DisplayObject* gnash::DisplayObject::getMask ( ) const [inline]

Return the DisplayObject masking this instance (if any)

References assert.

Referenced by gnash::MovieClip::pointInVisibleShape(), and gnash::MovieClip::pointInHitableShape().

ObjectURI gnash::DisplayObject::getNextUnnamedInstanceName ( )

Used to assign a name to unnamed instances.

References assert, stage(), gnash::movie_root::nextUnnamedInstance(), gnash::movie_root::getVM(), and gnash::getURI().

Referenced by gnash::SWF::ButtonRecord::instantiate(), gnash::MovieClip::add_display_object(), and gnash::MovieClip::replace_display_object().

const std::string& gnash::DisplayObject::getOrigTarget ( ) const [inline]

Return original target path to this object, in dot notation as of at construction time. This is needed to properly dereference dangling soft-references See testcase misc-swfc.all/soft_reference_test1.sc

as_object* gnash::DisplayObject::getPathElementSeparator ( string_table::key key ) [protected]

look for '.', 'this', '..', '_parent', '_level0' and '_root'

NOTE: case insensitive up to SWF6, sensitive from SWF7 up

virtual StaticText* gnash::DisplayObject::getStaticText	(	std::vector< const SWF::TextRecord * > &	,
		size_t &
	)		`[inline, virtual]`

Search for StaticText objects.

If this is a StaticText object and contains SWF::TextRecords, these are written to the passed parameter. @ return 0 if this object is not a StaticText or contains no text.

Reimplemented in gnash::InteractiveObject, and gnash::StaticText.

std::string gnash::DisplayObject::getTarget ( ) const

Return full path to this object, in dot notation.

e.g. "_level0.sprite1.sprite2.ourSprite"

References path, stage(), gnash::movie_root::getVM(), gnash::VM::getStringTable(), parent(), get_depth(), staticDepthOffset, get_name(), gnash::ObjectURI::toString(), assert, and gnash::Path::empty().

Referenced by gnash::ActionExec::operator()(), gnash::CharacterProxy::getTarget(), gnash::DisplayList::swapDepths(), gnash::DisplayList::mergeDisplayList(), set_invalidated(), gnash::setHeight(), gnash::setIndexedProperty(), saveOriginalTarget(), gnash::movie_root::swapLevels(), gnash::MovieClip::duplicateMovieClip(), gnash::MovieClip::notifyEvent(), gnash::MovieClip::advance(), gnash::MovieClip::execute_init_action_buffer(), gnash::MovieClip::pointInVisibleShape(), gnash::MovieClip::constructAsScriptObject(), gnash::MovieClip::construct(), gnash::MovieClip::removeMovieClip(), and gnash::TextField::removeTextField().

std::string gnash::DisplayObject::getTargetPath ( ) const

Return full path to this object, in slash notation.

e.g. "/sprite1/sprite2/ourSprite"

References path, gnash::getStringTable(), gnash::getObject(), parent(), get_name(), gnash::ObjectURI::toString(), assert, gnash::Path::empty(), stage(), gnash::movie_root::getRootMovie(), staticDepthOffset, and get_depth().

Referenced by gnash::movie_root::pushAction(), gnash::MovieClip::advance(), gnash::MovieClip::goto_frame(), and gnash::MovieClip::unloadChildren().

int gnash::DisplayObject::getVolume ( ) const [inline]

Get sound volume for this DisplayObject.

Referenced by getWorldVolume().

int gnash::DisplayObject::getWorldVolume ( ) const

Get concatenated sound volume for this DisplayObject.

NOTE: the concatenated volume does NOT include global volume settings, which is the one controlled by Sound instances created passing null, undefined or no argument to constructor.

References volume, _parent, and getVolume().

virtual bool gnash::DisplayObject::handleFocus ( ) [inline, virtual]

Set the current focus to this DisplayObject.

Returns:: false if the DisplayObject cannot receive focus, true if it can (and does). Button, Textfield and MovieClip can receive focus. In SWF6 and above, MovieClip can only receive focus if the focusEnabled property evaluates to true.

Reimplemented in gnash::MovieClip, and gnash::Button.

Referenced by gnash::movie_root::setFocus().

bool gnash::DisplayObject::hasEventHandler ( const event_id & id ) const

Return true if an handler for the given event is defined.

NOTE that we look for both clip-defined and user-defined handlers, which is likely error prone since we're doing this in a non-virtual function. Main use for this method is for being called by ::unload() to verify an Unload handler is available.

References gnash::as_object::findProperty().

Referenced by gnash::MovieClip::mouseEnabled(), and gnash::MovieClip::unloadChildren().

bool gnash::DisplayObject::invalidated ( ) const [inline]

Return whether this DisplayObject has been invalidated or not.

Referenced by gnash::Bitmap::add_invalidated_bounds(), gnash::Button::add_invalidated_bounds(), gnash::MovieClip::add_invalidated_bounds(), gnash::TextField::add_invalidated_bounds(), and gnash::Video::add_invalidated_bounds().

bool gnash::DisplayObject::isDestroyed ( ) const [inline]

Return true if this DisplayObject was destroyed.

See destroy() for more info.

Referenced by gnash::Button::set_current_state(), gnash::Button::destroy(), gnash::DisplayList::getDisplayObjectAtDepth(), gnash::DisplayList::unload(), gnash::DisplayList::destroy(), gnash::DisplayList::display(), gnash::operator<<(), gnash::EventCode::execute(), gnash::MovieClip::call_frame_actions(), and gnash::MovieClip::add_display_object().

bool gnash::DisplayObject::isDynamic ( ) const [inline]

Was this DisplayObject dynamically created ?

"Dynamically created" means created trough ActionScript.

NOTE, With current code:

Characters created by means of a loadMovie are NOT set as dynamic (should check if they should)
Characters created by attachMovie ARE dynamic
Characters created by duplicateMovieClip ARE dynamic
Characters created by createEmptyMovieClip ARE dynamic
Characters created by new Video ARE dynamic
Characters created by createTextField ARE dynamic

Referenced by gnash::DisplayList::mergeDisplayList(), gnash::MovieClip::notifyEvent(), gnash::MovieClip::construct(), gnash::MovieClip::get_bytes_total(), and gnash::MovieClip::get_bytes_loaded().

bool gnash::DisplayObject::isDynamicMask ( ) const [inline]

Returns true when the DisplayObject (and its childs) is used as a mask for another DisplayObject. isDynamicMask() does not return true when one of its parents is a mask and the DisplayObject itself is not.

NOTE: there's no way to obtain the maskee from a dynamic mask

See also isDynamicMask() and isMask()

References noClipDepthValue.

Referenced by gnash::DisplayList::display(), gnash::DisplayList::add_invalidated_bounds(), and pointInVisibleShape().

virtual bool gnash::DisplayObject::isSelectableTextField ( ) const [inline, virtual]

Return true if this DisplayObject is a selectable TextField.

This method is used by Gui to set up an appropriate cursor for input textfields.

Reimplemented in gnash::TextField.

Referenced by gnash::Gui::notifyMouseMove().

virtual void gnash::DisplayObject::killFocus ( ) [inline, virtual]

Some DisplayObjects require actions on losing focus.

Default is a no-op. TextField implements this function.

Referenced by gnash::movie_root::setFocus().

virtual void gnash::DisplayObject::markOwnResources ( ) const [inline, virtual]

Called by markReachableResources()

DisplayObjects should mark their own resources in this function.

Reimplemented in gnash::MovieClip, gnash::Button, and gnash::Video.

Referenced by markReachableResources().

void gnash::DisplayObject::markReachableResources ( ) const [virtual]

Mark all reachable resources.

Try not to override this function in derived classes. This always marks the base class's resources and calls markOwnResources() to take care of any further GC resources.

Reimplemented from gnash::GcResource.

References markOwnResources(), gnash::GcResource::setReachable(), and _parent.

as_object* gnash::DisplayObject::object ( ) const [inline]

virtual void gnash::DisplayObject::omit_display ( ) [inline, virtual]

Called instead of display() when the DisplayObject is not visible on stage. Used to clear the invalidated flags.

Reimplemented in gnash::MovieClip.

References clear_invalidated().

Referenced by gnash::DisplayList::display(), and gnash::DisplayList::omit_display().

DisplayObject* gnash::DisplayObject::parent ( ) const [inline]

as_object * gnash::DisplayObject::pathElement ( const ObjectURI & uri ) [virtual]

Find the object which is one degree removed from us, given the relative pathname.

If the pathname is "..", then return our parent. If the pathname is ".", then return ourself. If the pathname is "_level0" or "_root", then return the root movie.

Otherwise, the name should refer to one our our named DisplayObjects, so we return it.

NOTE: In ActionScript 2.0, top level names (like "_root" and "_level0") are CASE SENSITIVE. Character names in a display list are CASE SENSITIVE. Member names are CASE INSENSITIVE. Gah.

In ActionScript 1.0, everything seems to be CASE INSENSITIVE.

Reimplemented in gnash::MovieClip.

References gnash::getObject(), gnash::getName(), stage(), gnash::movie_root::getVM(), gnash::VM::getStringTable(), gnash::string_table::find(), parent(), gnash::caseless(), and gnash::NSV::PROP_THIS.

Referenced by gnash::movie_root::findCharacterByTarget().

bool gnash::DisplayObject::pointInBounds	(	boost::int32_t	x,
		boost::int32_t	y
	)		const `[inline]`

Return true if the given point falls in this DisplayObject's bounds.

Parameters:

x	Point x coordinate in world space
y	Point y coordinate in world space

Returns:: Whether (x, y) is within the DisplayObject's bounds. This ignores _root's transform.

References getBounds(), gnash::getWorldMatrix(), gnash::SWFMatrix::transform(), and gnash::SWFRect::point_test().

Referenced by gnash::Bitmap::pointInShape(), gnash::InteractiveObject::pointInShape(), gnash::StaticText::pointInShape(), and gnash::Video::pointInShape().

virtual bool gnash::DisplayObject::pointInShape	(	boost::int32_t	x,
		boost::int32_t	y
	)		const `[pure virtual]`

Return true if the given point falls in this DisplayObject's shape.

Parameters:

x	Point x coordinate in world space
y	Point y coordinate in world space

Returns:: Whether (x, y) is within the DisplayObject's bounds.

Implemented in gnash::TextField, gnash::MovieClip, gnash::InteractiveObject, gnash::Button, gnash::StaticText, gnash::Bitmap, gnash::Shape, gnash::MorphShape, and gnash::Video.

Referenced by gnash::Button::pointInShape(), pointInVisibleShape(), gnash::MovieClip::pointInVisibleShape(), and gnash::MovieClip::pointInHitableShape().

virtual bool gnash::DisplayObject::pointInVisibleShape	(	boost::int32_t	x,
		boost::int32_t	y
	)		const `[inline, virtual]`

true if the given point falls in this DisplayObject's visible shape

Point coordinates are in world TWIPS

The default implementation returns false if the DisplayObject is not visible, calling pointInShape() otherwise.

Note that this is good for simple DisplayObjects but needs to be overridden for DisplayObjects with childs. When a DisplayObject has childs it must take into account the case in which some childs are visible and some are not.

Reimplemented in gnash::MovieClip.

References visible(), isDynamicMask(), isMaskLayer(), and pointInShape().

Referenced by findDropTarget().

double gnash::DisplayObject::rotation ( ) const [inline]

Referenced by setWidth(), setHeight(), and set_rotation().

void gnash::DisplayObject::saveOriginalTarget ( ) [inline, protected]

Register currently computable target as the "original" one. This will be used by soft references (as_value) and should be called as soon as the stagePlacementCallback is invoked.

References getTarget().

Referenced by gnash::Button::construct(), construct(), gnash::MovieClip::construct(), gnash::SWFMovie::construct(), and gnash::Video::construct().

double gnash::DisplayObject::scaleX ( ) const [inline]

Referenced by set_rotation().

double gnash::DisplayObject::scaleY ( ) const [inline]

void gnash::DisplayObject::set_child_invalidated ( )

Called by a child to signalize it has changed visibily. The difference to set_invalidated() is that *this* DisplayObject does not need to redraw itself completely. This function will recursively inform all its parents of the change.

References _parent, and set_child_invalidated().

Referenced by set_invalidated(), and set_child_invalidated().

void gnash::DisplayObject::set_clip_depth ( int d ) [inline]

See get_clip_depth()

References gnash::key::d.

Referenced by setMask(), gnash::MovieClip::duplicateMovieClip(), gnash::MovieClip::add_display_object(), and gnash::MovieClip::getLoadedMovie().

void gnash::DisplayObject::set_depth ( int d ) [inline]

References gnash::key::d.

Referenced by gnash::Button::set_current_state(), gnash::SWF::ButtonRecord::instantiate(), gnash::DisplayList::placeDisplayObject(), gnash::DisplayList::replaceDisplayObject(), gnash::DisplayList::swapDepths(), gnash::DisplayList::insertDisplayObject(), gnash::movie_root::swapLevels(), and gnash::movie_root::replaceLevel().

void gnash::DisplayObject::set_event_handlers ( const Events & copyfrom ) [protected]

References gnash::key::i, gnash::key::e, assert, and add_event_handler().

Referenced by gnash::MovieClip::duplicateMovieClip(), and gnash::MovieClip::getLoadedMovie().

void gnash::DisplayObject::set_invalidated ( )

This function marks the DisplayObject as being modified in aspect and keeps track of current invalidated bounds the first time it's called after each call to clear_invalidated().

Call this function *before* any change in this DisplayObject that modifies its rendering. This information will be used to detect visual changes that need to be redrawn.

It is *important* to call this function *before* the change rather then after as it will also take care of updating the previously invalidated bounds (m_old_invalidated_bounds)

Calling this function multiple time is a no-op, unless clear_invalidated() is called in between.

NOTE: Marking a DisplayObject as invalidated automatically marks its parent as being invalidated.

See also:: Detection of updated regions

void gnash::DisplayObject::set_invalidated	(	const char *	debug_file,
		int	debug_line
	)

References _parent, set_child_invalidated(), getTarget(), UNUSED, m_old_invalidated_ranges, gnash::geometry::SnappingRanges2d::setNull(), and add_invalidated_bounds().

void gnash::DisplayObject::set_name ( const ObjectURI & uri ) [inline]

Set DisplayObject name, initializing the original target member.

References _name.

Referenced by gnash::SWF::ButtonRecord::instantiate(), gnash::MovieClip::duplicateMovieClip(), gnash::MovieClip::add_display_object(), gnash::MovieClip::replace_display_object(), and gnash::MovieClip::getLoadedMovie().

void gnash::DisplayObject::set_parent ( DisplayObject * parent ) [inline]

Set the parent of this DisplayObject.

In AS3, DisplayObjects may be created before being attached to a parent. In AS2, this is only used for external movies

References _parent, and parent().

Referenced by gnash::MovieClip::getLoadedMovie().

void gnash::DisplayObject::set_ratio ( boost::uint16_t r ) [inline]

References set_invalidated(), and gnash::key::r.

Referenced by gnash::DisplayList::moveDisplayObject(), gnash::MovieClip::duplicateMovieClip(), gnash::MovieClip::add_display_object(), and gnash::MovieClip::replace_display_object().

void gnash::DisplayObject::set_rotation ( double rot )

Set the rotation value of current SWFMatrix.

Set the real and cached rotation.

This is used when setting _rotation See rotation_getset

Parameters:

rot	rotation in degrees. will be trimmed to the -180 .. 180 range, can be passed outside it.

Cached scale values are not updated.

References rotation(), gnash::key::m, gnash::getMatrix(), gnash::SWFMatrix::set_rotation(), gnash::SWFMatrix::set_x_scale(), scaleX(), setMatrix(), and transformedByScript().

void gnash::DisplayObject::set_visible ( bool visible )

Set whether this DisplayObject should be rendered.

TODO: handle all visible getter/setters in DisplayObject, not in subclasses, and drop this / make it private.

References set_invalidated(), assert, stage(), gnash::movie_root::getFocus(), gnash::movie_root::setFocus(), and visible().

void gnash::DisplayObject::set_x_scale ( double scale_percent )

Set the xscale value of current SWFMatrix.

Set the real and cached x scale.

This is used when setting _xscale. See xscale_getset.

Parameters:

factor scale factor, in percent

Cached rotation and y scale are not updated.

References gnash::key::m, gnash::getMatrix(), gnash::SWFMatrix::set_x_scale(), setMatrix(), and transformedByScript().

void gnash::DisplayObject::set_y_scale ( double scale_percent )

Set the yscale value of current SWFMatrix.

Set the real and cached y scale.

This is used when setting _yscale See yscale_getset.

Parameters:

factor scale factor, in percent

Cached rotation and x scale are not updated.

References gnash::key::m, gnash::getMatrix(), gnash::SWFMatrix::set_y_scale(), setMatrix(), and transformedByScript().

void gnash::DisplayObject::setBlendMode ( BlendMode bm ) [inline]

Referenced by blendMode(), and gnash::MovieClip::add_display_object().

void gnash::DisplayObject::setCxForm ( const SWFCxForm & cx ) [inline]

References gnash::Transform::colorTransform, and set_invalidated().

Referenced by gnash::SWF::ButtonRecord::instantiate(), gnash::DisplayList::replaceDisplayObject(), gnash::DisplayList::moveDisplayObject(), gnash::DisplayList::mergeDisplayList(), gnash::MovieClip::duplicateMovieClip(), gnash::MovieClip::add_display_object(), and gnash::MovieClip::replace_display_object().

void gnash::DisplayObject::setDynamic ( ) [inline]

Mark this DisplayObject as dynamically created.

Referenced by gnash::MovieClip::duplicateMovieClip().

void gnash::DisplayObject::setHeight ( double height ) [virtual]

Set the height of this DisplayObject, modifying its SWFMatrix.

This is used when setting _height

Parameters:

h	new height, in TWIPS.

Reimplemented in gnash::TextField.

References getBounds(), gnash::SWFRect::height(), assert, rotation(), gnash::key::m, gnash::getMatrix(), gnash::SWFMatrix::get_x_scale(), gnash::SWFMatrix::set_scale_rotation(), and setMatrix().

Referenced by gnash::setHeight().

void gnash::DisplayObject::setMask ( DisplayObject * mask )

Register a DisplayObject as a mask for this instance.

Parameters:

mask	The DisplayObject to use as a mask, possibly NULL. A reference to us will be registered with the mask, if not null, so it'll know it's a mask for us, and would stop being a mask for anything else.

Register as as masked by the mask

References set_invalidated(), setMask(), set_clip_depth(), and noClipDepthValue.

Referenced by unload(), and setMask().

void gnash::DisplayObject::setMatrix	(	const SWFMatrix &	m,
		bool	updateCache = `false`
	)

Set local transform SWFMatrix for this DisplayObject.

Parameters:

m	the new SWFMatrix to assign to this DisplayObject
updateCache	if true, updates the cache values from the SWFMatrix (only if SWFMatrix != current SWFMatrix)

References gnash::Transform::matrix, set_invalidated(), gnash::key::m, gnash::SWFMatrix::get_x_scale(), gnash::SWFMatrix::get_y_scale(), and gnash::SWFMatrix::get_rotation().

Referenced by gnash::SWF::ButtonRecord::instantiate(), gnash::DisplayList::replaceDisplayObject(), gnash::DisplayList::moveDisplayObject(), gnash::DisplayList::mergeDisplayList(), setWidth(), setHeight(), set_x_scale(), set_rotation(), set_y_scale(), gnash::MovieClip::duplicateMovieClip(), gnash::MovieClip::add_display_object(), and gnash::MovieClip::replace_display_object().

void gnash::DisplayObject::setVolume ( int vol ) [inline]

Set sound volume for this DisplayObject.

void gnash::DisplayObject::setWidth ( double width ) [virtual]

Set the width of this DisplayObject, modifying its SWFMatrix.

This is used when setting _width

Parameters:

w	new width, in TWIPS. TextField does this differently (caches not updated).

Reimplemented in gnash::TextField.

References getBounds(), gnash::SWFRect::width(), assert, rotation(), gnash::key::m, gnash::getMatrix(), gnash::SWFMatrix::get_y_scale(), gnash::SWFMatrix::set_scale_rotation(), and setMatrix().

movie_root& gnash::DisplayObject::stage ( ) const [inline, protected]

virtual MovieClip* gnash::DisplayObject::to_movie ( ) [inline, virtual]

Reimplemented in gnash::MovieClip.

Referenced by gnash::getVariable(), gnash::as_value::toMovieClip(), gnash::as_value::typeOf(), gnash::getDisplayObjectProperty(), gnash::MovieClip::duplicateMovieClip(), gnash::MovieClip::getLoadedMovie(), and gnash::TextField::removeTextField().

virtual InteractiveObject* gnash::DisplayObject::topmostMouseEntity	(	boost::int32_t	,
		boost::int32_t
	)		`[inline, virtual]`

DisplayObjects are not a mouse entity by default.

Override this function for InteractiveObjects.

Reimplemented in gnash::MovieClip, gnash::TextField, gnash::InteractiveObject, and gnash::Button.

Referenced by gnash::Button::topmostMouseEntity().

const Transform& gnash::DisplayObject::transform ( ) const [inline]

Referenced by gnash::Bitmap::display(), gnash::Button::display(), gnash::MorphShape::display(), gnash::MovieClip::display(), gnash::Shape::display(), gnash::StaticText::display(), gnash::TextField::display(), and gnash::Video::display().

void gnash::DisplayObject::transformedByScript ( ) [inline]

Call this function when the sprite has been transformed due to ActionScript code.

This information will be used while executing PlaceObject tags in that ActionScript-transformed DisplayObjects won't be allowed to be moved.

TODO: make protected

Referenced by gnash::DisplayList::swapDepths(), set_x_scale(), set_rotation(), and set_y_scale().

bool gnash::DisplayObject::unload ( )

Unload this instance from the stage.

This function must be called when the DisplayObject is removed from the stage. It will take care of properly calling unload against any child DisplayObjects and queuing the 'UNLOAD' event handler.

Returns:: true if any onUnload event handler was defined by either this or any child DisplayObjects, false otherwise.

References unloadChildren(), and setMask().

Referenced by gnash::Button::set_current_state(), gnash::Button::unloadChildren(), gnash::DisplayList::placeDisplayObject(), gnash::DisplayList::replaceDisplayObject(), gnash::DisplayList::removeDisplayObject(), gnash::DisplayList::unload(), gnash::DisplayList::mergeDisplayList(), and gnash::movie_root::dropLevel().

virtual bool gnash::DisplayObject::unloadChildren ( ) [inline, protected, virtual]

Reimplemented in gnash::MovieClip, and gnash::Button.

Referenced by unload().

bool gnash::DisplayObject::unloaded ( ) const [inline]

Return true if this DisplayObject was unloaded from the stage.

Referenced by gnash::ActionExec::operator()(), gnash::Button::keyPress(), gnash::Button::mouseEvent(), gnash::Button::set_current_state(), gnash::Button::unloadChildren(), gnash::DisplayList::placeDisplayObject(), gnash::DisplayList::replaceDisplayObject(), gnash::DisplayList::moveDisplayObject(), gnash::DisplayList::insertDisplayObject(), gnash::DisplayList::display(), gnash::DisplayList::mergeDisplayList(), gnash::DisplayList::removeUnloaded(), gnash::operator<<(), gnash::movie_root::keyEvent(), gnash::MovieClip::notifyEvent(), gnash::MovieClip::advance(), gnash::MovieClip::construct(), and gnash::MovieClip::unloadChildren().

virtual void gnash::DisplayObject::update ( ) [inline, virtual]

Notify a change in the DisplayObject's appearance.

Reimplemented in gnash::Bitmap.

References set_invalidated().

Referenced by gnash::BitmapData_as::updateObjects().

bool gnash::DisplayObject::visible ( ) const [inline]

Referenced by gnash::Button::topmostMouseEntity(), gnash::Button::add_invalidated_bounds(), gnash::DisplayList::display(), add_invalidated_bounds(), set_visible(), pointInVisibleShape(), findDropTarget(), gnash::movie_root::display(), gnash::MovieClip::pointInVisibleShape(), gnash::MovieClip::topmostMouseEntity(), gnash::MovieClip::findDropTarget(), gnash::MovieClip::add_invalidated_bounds(), and gnash::TextField::topmostMouseEntity().

virtual void gnash::DisplayObject::visitNonProperties ( KeyVisitor & ) const [inline, virtual]

Enumerate any non-proper properties.

This function allows enumeration of properties that are derived from the DisplayObject type, e.g. DisplayList members.

The default implementation adds nothing

Reimplemented in gnash::MovieClip.

Referenced by gnash::as_object::visitKeys().

Member Data Documentation

ObjectURI gnash::DisplayObject::_name [protected]

Name of this DisplayObject (if any)

Referenced by set_name(), and get_name().

DisplayObject* gnash::DisplayObject::_parent [protected]

Referenced by getWorldVolume(), set_invalidated(), set_child_invalidated(), markReachableResources(), get_environment(), parent(), and set_parent().

const int gnash::DisplayObject::lowerAccessibleBound = -16384 [static]

The lowest placeable and accessible depth for a DisplayObject. Macromedia Flash help says: depth starts at -16383 (0x3FFF)

See: http://www.senocular.com/flash/tutorials/depths/?page=2 The only way to exceed these bounds is with createEmptyMoveClip(), which can be placed at any depth within +/- 2**31.

InvalidatedRanges gnash::DisplayObject::m_old_invalidated_ranges [protected]

Bounds of this DisplayObject instance before first invalidation since last call to clear_invalidated().

This stores the bounds of the DisplayObject before it has been changed, ie. the position when set_invalidated() is being called. While drawing, both the old and the new bounds are updated (rendered). When moving a DisplayObject A to B then both the position A needs to be re-rendered (to reveal the backgrond) and the position B needs to be re-rendered (to show the DisplayObject in its new position). The bounds may be identical or overlap, but SnappingRanges takes care of that.

Will be set by set_invalidated() and used by get_invalidated_bounds().

Referenced by gnash::Bitmap::add_invalidated_bounds(), gnash::Button::add_invalidated_bounds(), DisplayObject(), set_invalidated(), add_invalidated_bounds(), extend_invalidated_bounds(), clear_invalidated(), gnash::MovieClip::add_invalidated_bounds(), gnash::TextField::add_invalidated_bounds(), and gnash::Video::add_invalidated_bounds().

const int gnash::DisplayObject::noClipDepthValue = -1000000 [static]

This value is used for m_clip_depth when the DisplayObject is not a layer mask. Depths below -16384 are illegal, so this value should not collide with real depths.

Referenced by setMask(), and isMaskLayer().

const int gnash::DisplayObject::removedDepthOffset = -32769 [static]

This is the offset at which DisplayObject's depth is shifted when a DisplayObject is removed from stage but an onUnload event handler is defined.

Example: a DisplayObject at depth 60 gets moved to depth -32829 (-32769-60) when unloaded and an onUnload event handler is defined for it or any of its childs.

So, to recap: 1: -32769 to -16385 are removed 2: -16384 to 0 are statics 3: Max depth for a PlaceObject call is 16384 (which becomes 0 in the statics) (all of the above correct?)

Referenced by gnash::Button::set_current_state().

const int gnash::DisplayObject::staticDepthOffset = lowerAccessibleBound [static]

This is the amount added to displaylist tag defined depths. DisplayObjects placed by tags (vs. DisplayObjects instantiated by ActionScript) always have negative depths by effect of this offset.

Referenced by gnash::BitmapMovie::BitmapMovie(), gnash::SWF::ButtonRecord::instantiate(), gnash::DisplayList::swapDepths(), getTargetPath(), getTarget(), gnash::movie_root::setLevel(), gnash::movie_root::swapLevels(), gnash::movie_root::replaceLevel(), gnash::movie_root::getLevel(), and gnash::MovieClip::getLoadedMovie().

const int gnash::DisplayObject::upperAccessibleBound = 2130690044 [static]

This is the maximum depth a MovieClip DisplayObject can be placed at (attachMovie). Kirupa (see above) says 2130690045, but this seems not to be included in the range.

The documentation for this class was generated from the following files:

Classes

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
